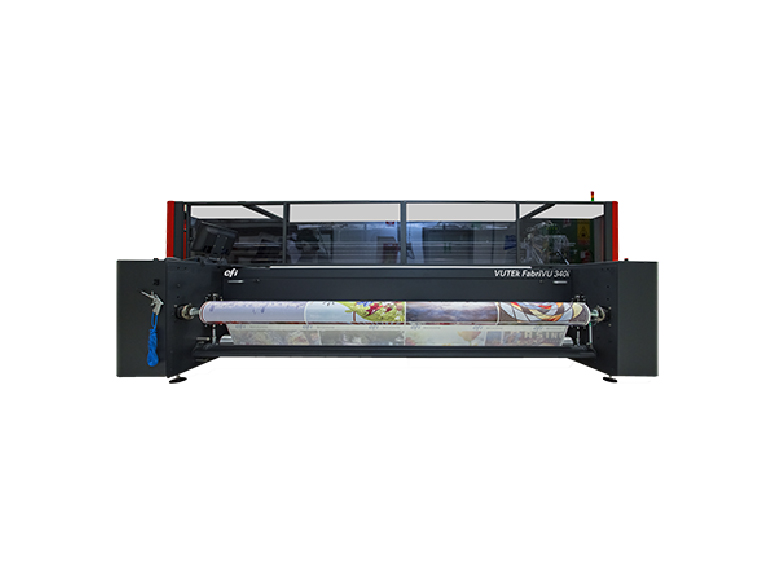

EFI FabriVu 340i Plus

The EFI VUTEk FabriVU 340i+ is a high-performance dye-sublimation soft signage printer designed for businesses seeking to expand into profitable textile applications. It offers a versatile solution for both direct-to-fabric and transfer paper printing, eliminating the need for a separate heat press by integrating an inline fixation unit that can be activated as needed.

Key Features

• Print Width and Speed: Supports a maximum roll width of 340 cm and delivers production-level speeds up to 480 m²/hr, accommodating a variety of large-format applications.

• Resolution and Printheads: Equipped with 8 Kyocera printheads, the FabriVU 340i+ achieves a resolution of 600 dpi, doubling the previous model's resolution and enhancing image clarity.

• Advanced Media Control: Capable of printing directly onto a wide range of polyester-based materials or transfer paper, offering flexibility in material selection and cost savings.

• Exceptional Image Quality: Delivers ultra-high resolution up to 2,400 dpi with three-level grayscale printing (7pL, 12pL, and 18pL drop sizes), resulting in smooth transitions and vibrant, deep color saturation suitable for high-quality, backlit fabric displays.

• Lower Ink Consumption and Waste: Utilizes EFI's water-based, dispersed dye inks, which contain higher concentrations of dye and less water, facilitating easier drying. The system's ink recovery feature saves over 95% of inks lost during purging, reducing waste and operational costs.

• Fiery Driven: Incorporates the Fiery® proServer Premium digital front end, optimized for EFI VUTEk printers, providing advanced color management and RIP capabilities to streamline workflows.

Applications

The FabriVU 340i+ is ideal for producing a wide array of soft signage applications, including:

• Day/Night backlit graphics

• Exhibition and silicone edge graphics

• Retail fixture wraps

• Front-lit graphics

• Flags

• Home and hospitality furnishings

Its ability to handle high ink volumes and manage both sides of the material efficiently makes it particularly suitable for flag printing applications
