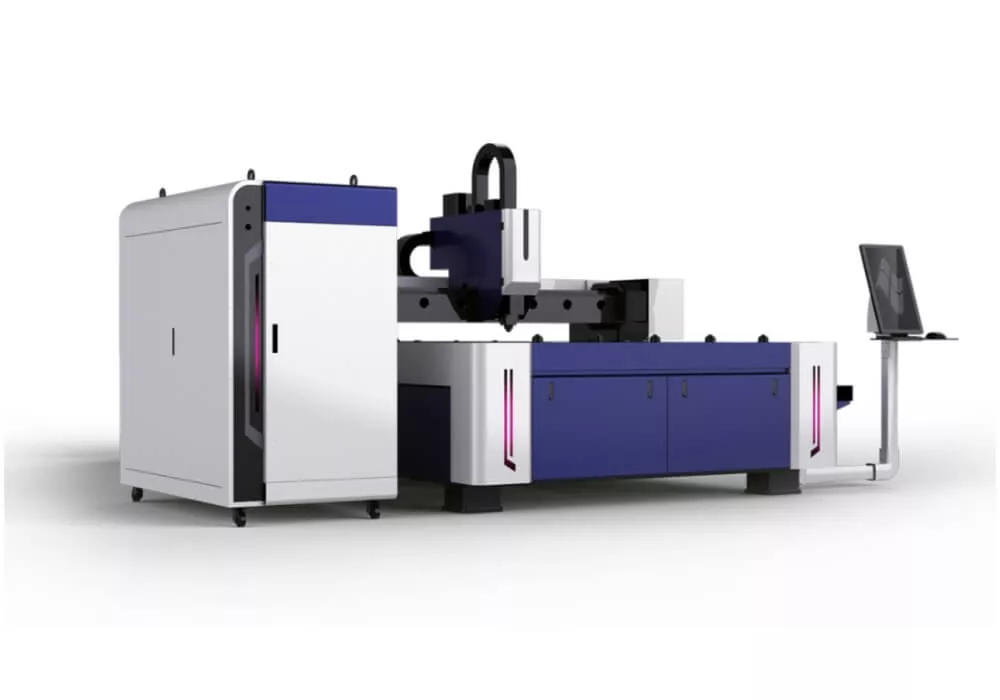

CP TECH F-B Basic High Power Fiber Laser Cutting Machine

Brand: CP TECH

CP TECH F-B Basic High Power Fiber Laser Cutting Machine

F-B Basic High Power Fiber Laser Cutting Machine

Features: Designed for challenging, dense materials and intricate jobs. The F-B delivers up to 20000W of power for quick and precise results — ideal for extensive, high-precision industrial demands.

Sheet Metal Laser Cutting Machine Technical Specifications

Mode	F-3015B	F-6015B	F-4020B	F-6025B
Working Area	3000*1500mm	6000*1500mm	4000*2000mm	6000*2500mm
X Y Z Axis Stroke	15203100100mm	15206050100mm	20404050100mm	25106100260mm
Laser Power Supply	2000w, 3000w, 6000w, 12000w, 20000w
Maximum Acceleration	2G
Positioning Accuracy	±0.03mm
Voltage	380V 3PH 50/60HZ
Cutting Ability	Carbon Steel: 1-80mm, Stainless Steel: 1-70mm, Aluminum: 1-60mm, Brass: 1-20mm
Upgrade	Air Conditioner, Smoke Purifier, Air Compressor, Voltage Regulator
