MIMAKI CG-60AR

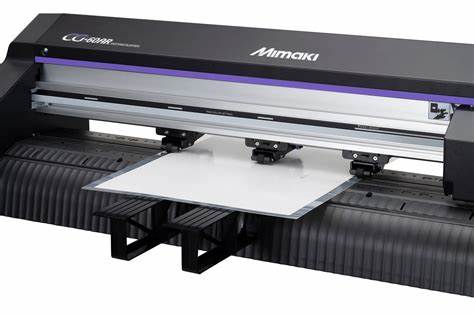

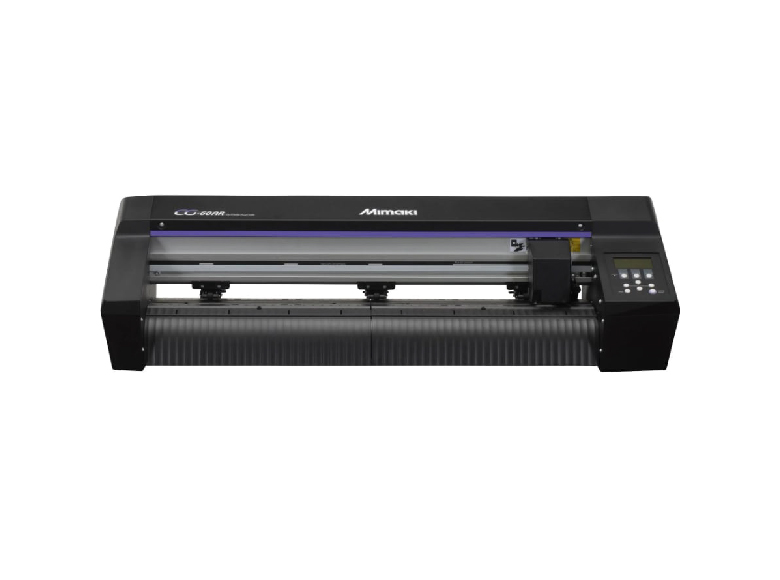

MIMAKI CG-60AR – 60cm Roll-to-Roll Cutting Plotter for Precision Vinyl Cutting

The MIMAKI CG-60AR is a 60cm (23.6") roll-to-roll cutting plotter designed for precision and versatility in vinyl cutting applications. Ideal for small to medium-sized businesses, this cutter offers high-quality performance for producing decals, stickers, labels, and other vinyl-based products.

Key Features:

• Maximum Media Width: 740 mm (29.1")

• Effective Cutting Area: 606 mm (23.9")

• Maximum Cutting Speed: 73 cm/s (28.7")

• Maximum Downforce Pressure: 550 g

• Mechanical Resolution: X direction: 2.5 μm; Y direction: 5 μm

• Command Resolution: 25 μm, 10 μm (MGL-IIc); 100 μm, 50 μm (MGL-Ic1)

• Repeatability: ±0.2 mm over 2 meters

• Interface Options: USB, RS-232C, Ethernet

• Power Supply: AC 100 V – 240 V 1A 50/60Hz

• Power Consumption: 168W or less

• Dimensions (W × D × H): 1,010 × 355 × 355 mm (39.8 × 14.0 × 14.0")

• Weight: 17 kg (37.5 lbs)

• Vinyl Cutting: Ideal for cutting various vinyl materials for signage and decals.

• Label Production: Suitable for creating custom labels for products.

• Sticker Making: Perfect for producing personalized stickers for promotional purposes.Mimaki Europe

Advantages:

• High Precision Cutting: Achieves fine detail with mechanical resolution down to 2.5 μm.

• Versatile Material Compatibility: Handles a wide range of materials, including vinyl, reflective sheets, and fluorescent sheets.

• User-Friendly Interface: Supports multiple interface options for flexible connectivity.

• Compact Design: Space-saving dimensions make it suitable for small workspaces
